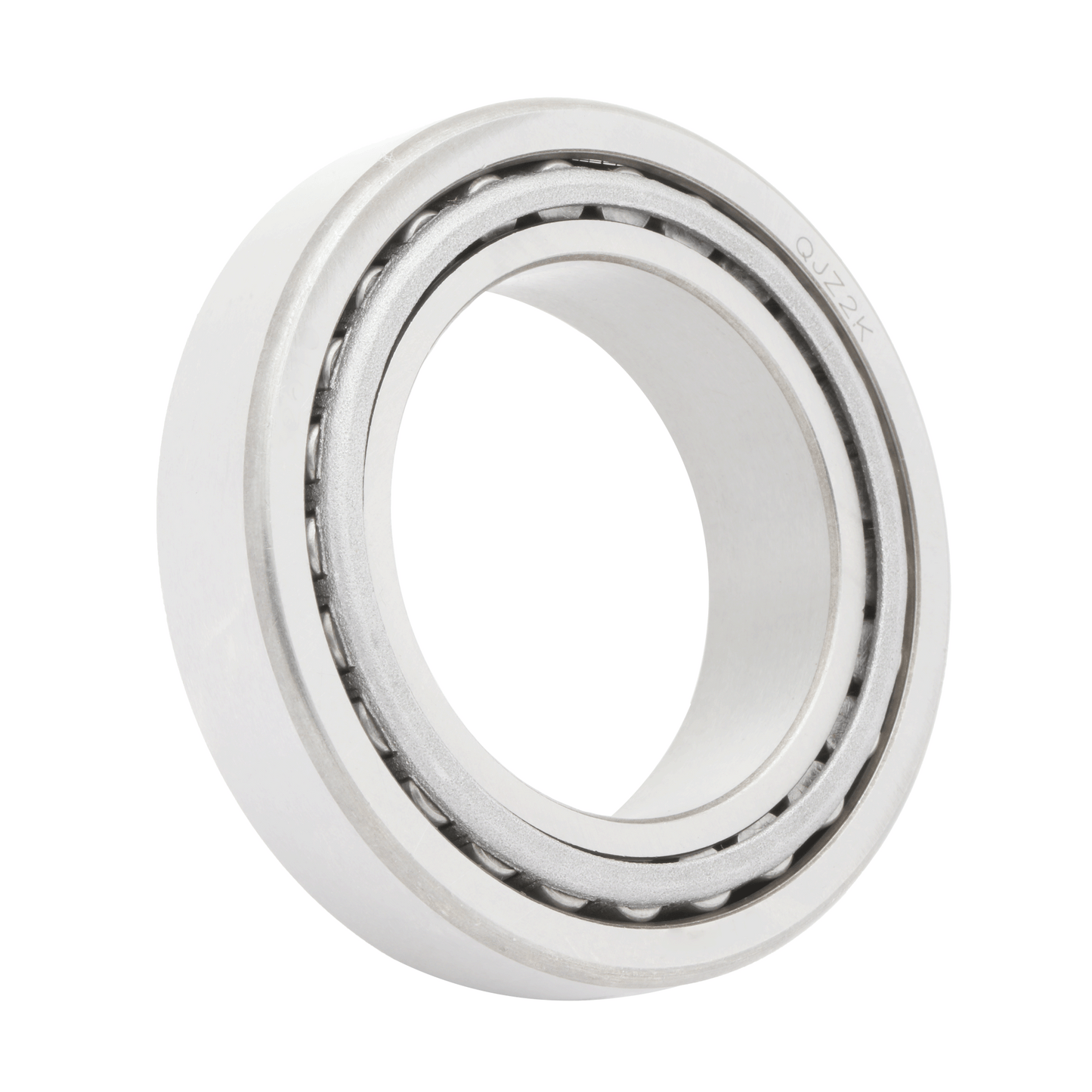

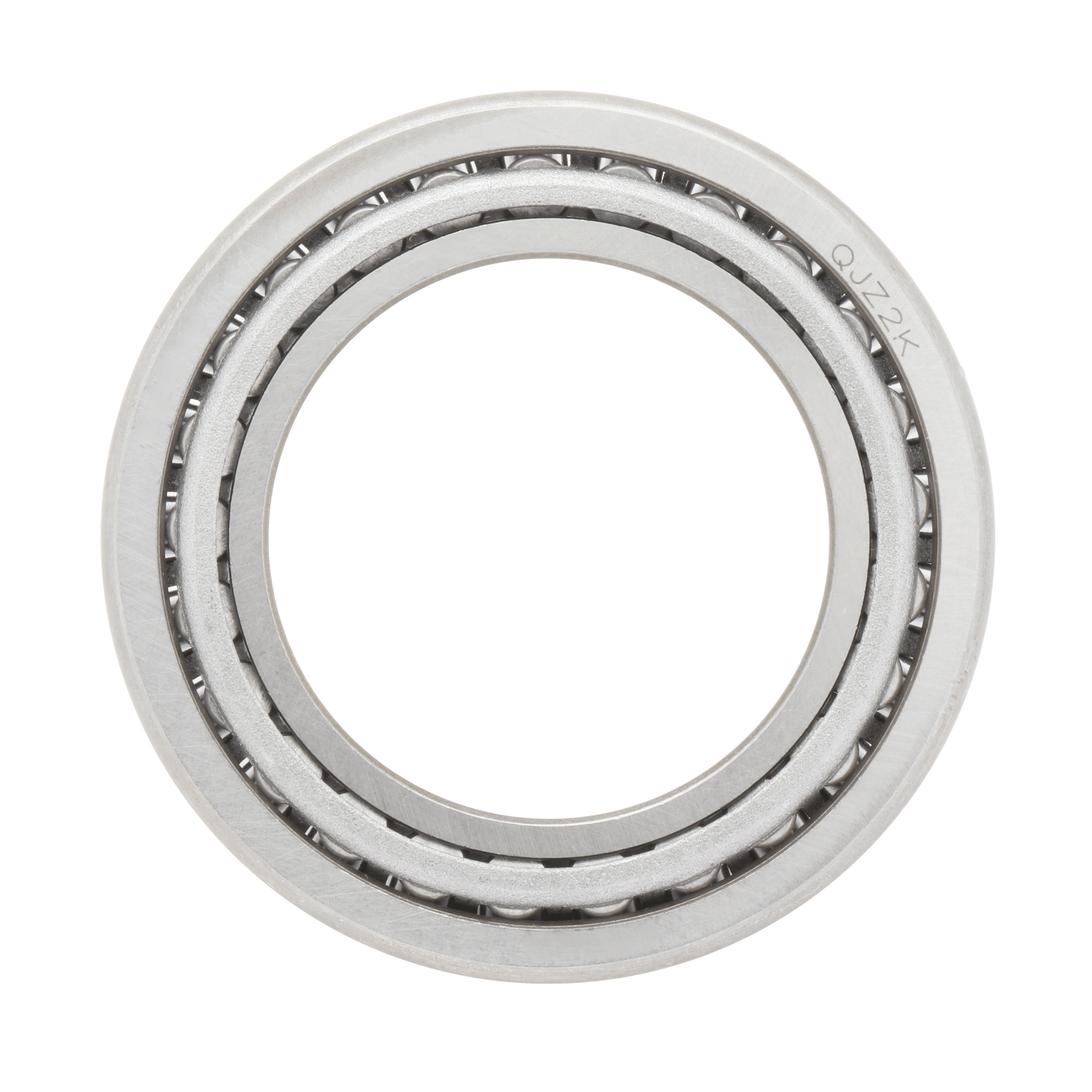

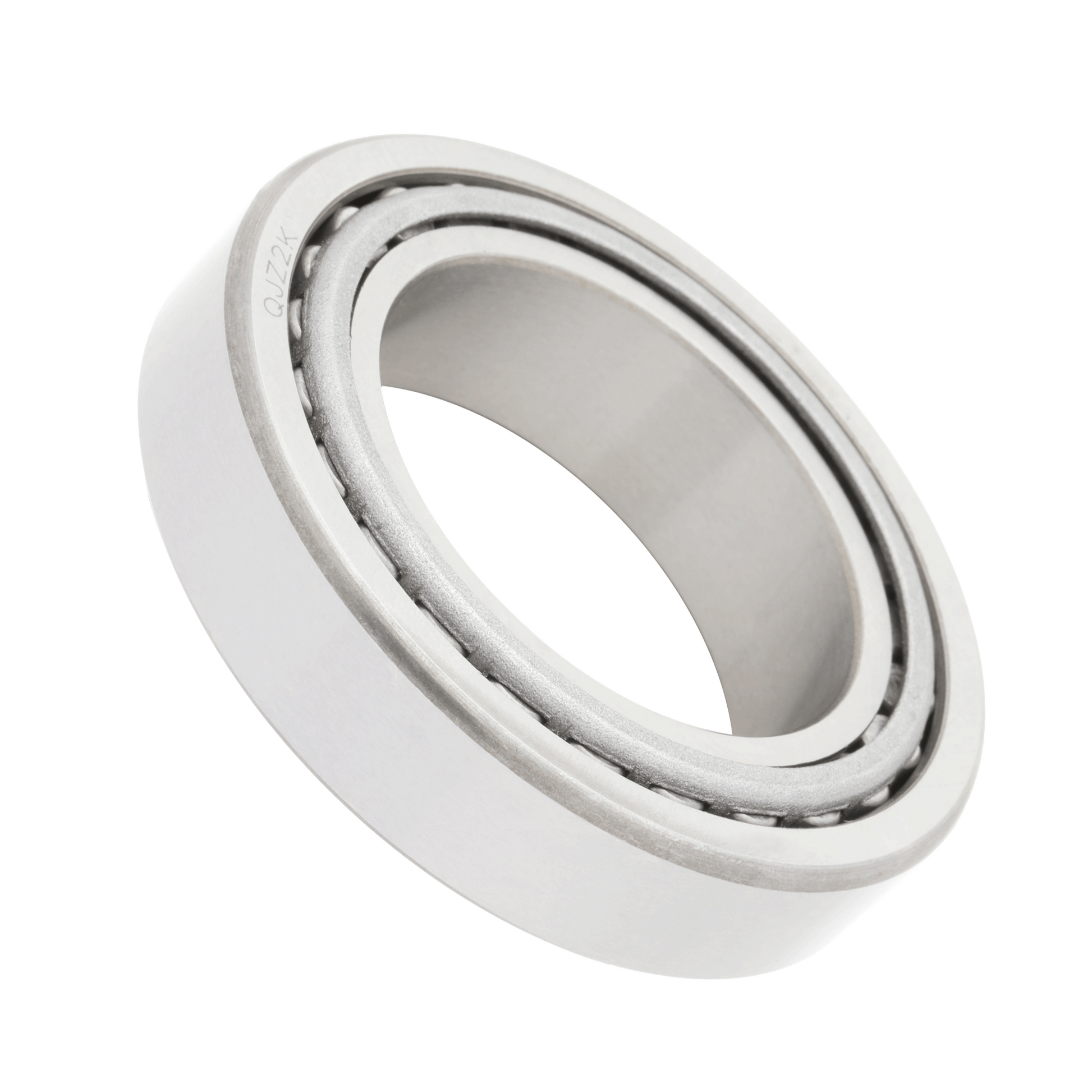

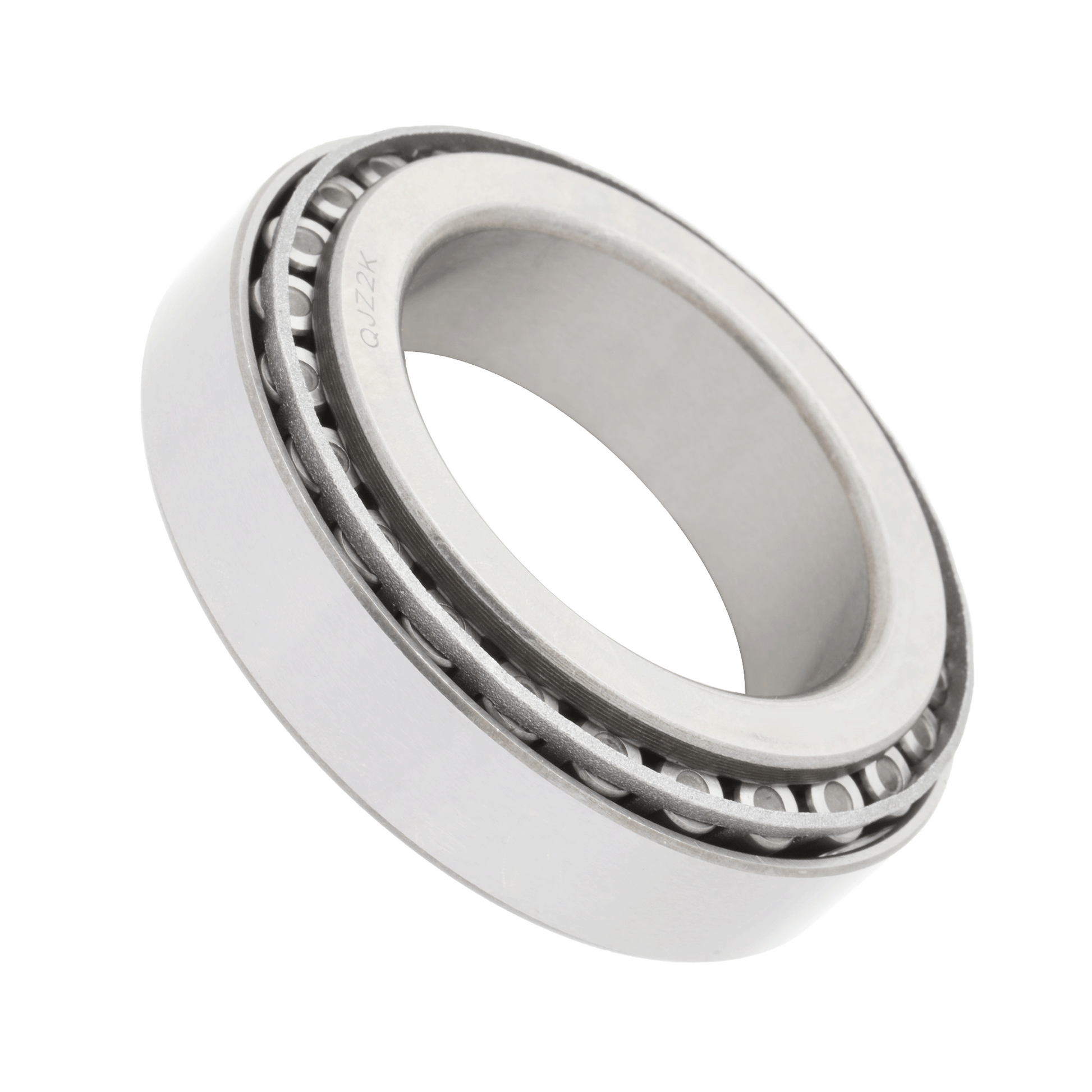

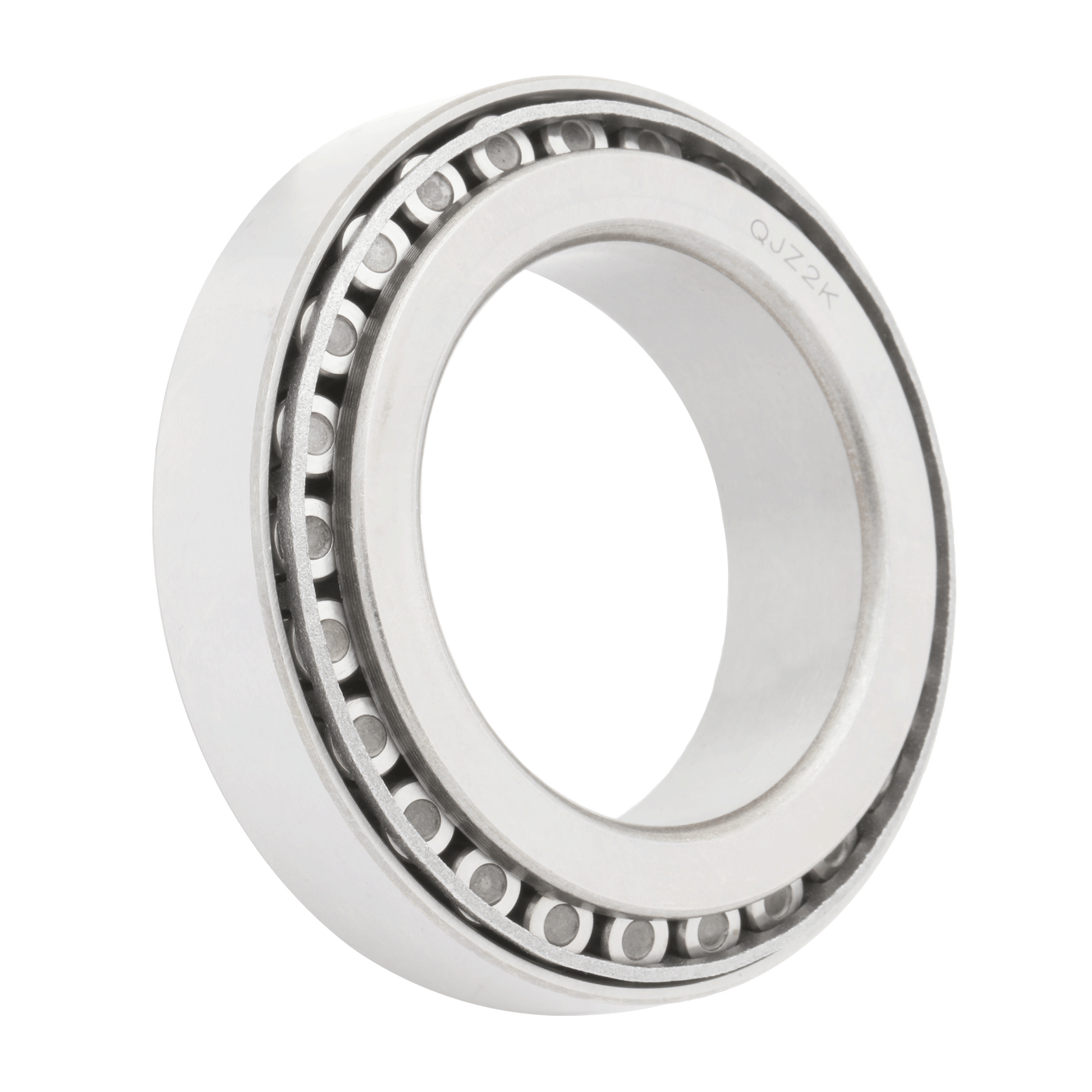

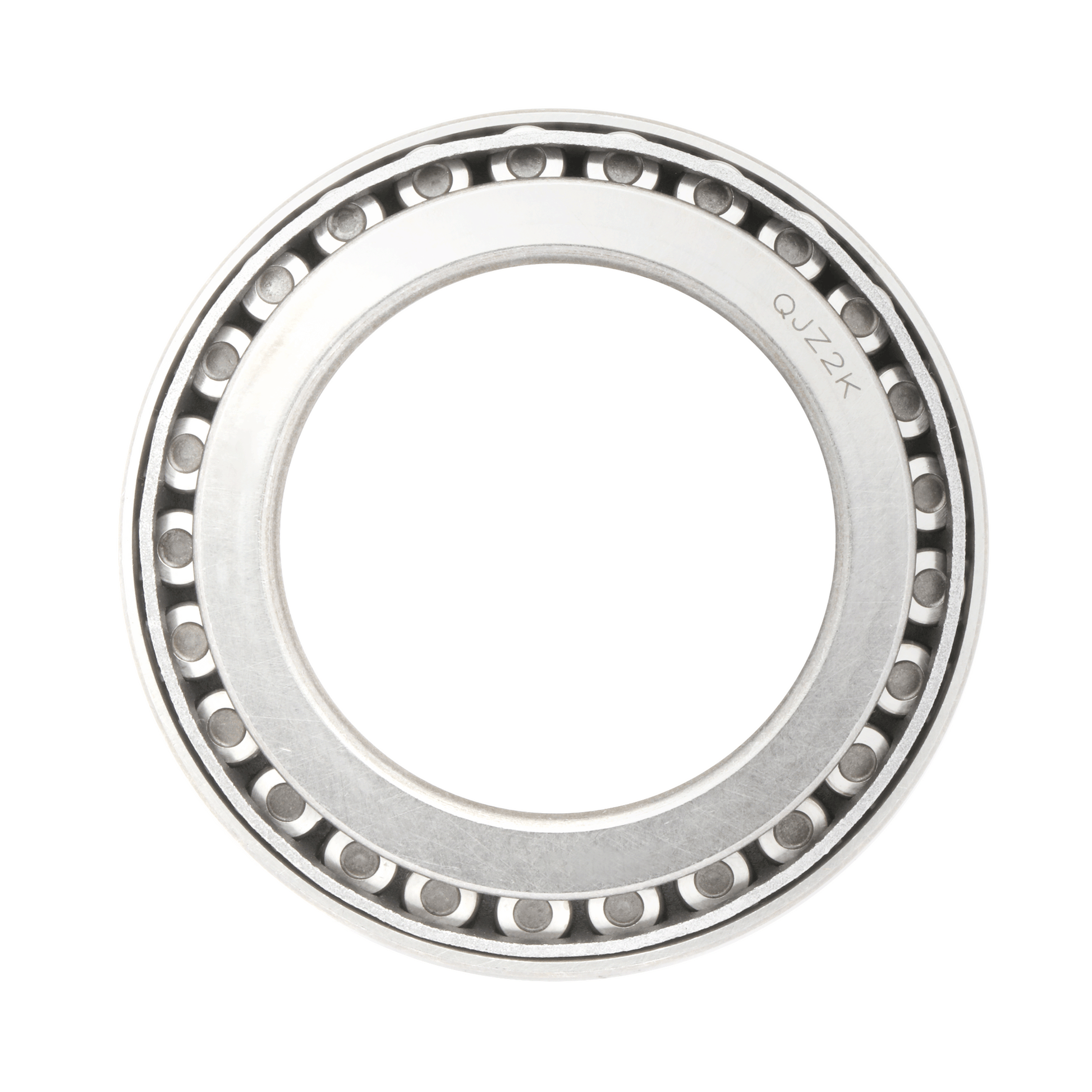

Cone & Race: 33109 - Tapered Roller Bearing Set

Bearing Type:

33109 Taper Roller Bearing Set

Dimensions in Inches:

1.7717 in (Inner Diameter) x 3.1496 in (Outer Diameter) x 1.0236 in (Total Bearing Width)

Cone Width: 1.0236 in

Cup Width: 0.8071 in

Dimensions in Millimeter:

45 mm (Inner Diameter) x 80 mm (Outer Diameter) x 26 mm (Total Bearing Width)

Cone Width: 26 mm

Cup Width: 20.5 mm

Cross Reference:

33109-90KA1, 33109-90KA2, 33109-90NA3, T3CE045, VKHB 2056, HDB057, SET 1097

OEM Replacement Numbers:

JD10062, 003 981 1105, 003 981 1605, 003 981 9605, 006 981 5705, 84074701, 0023336288
