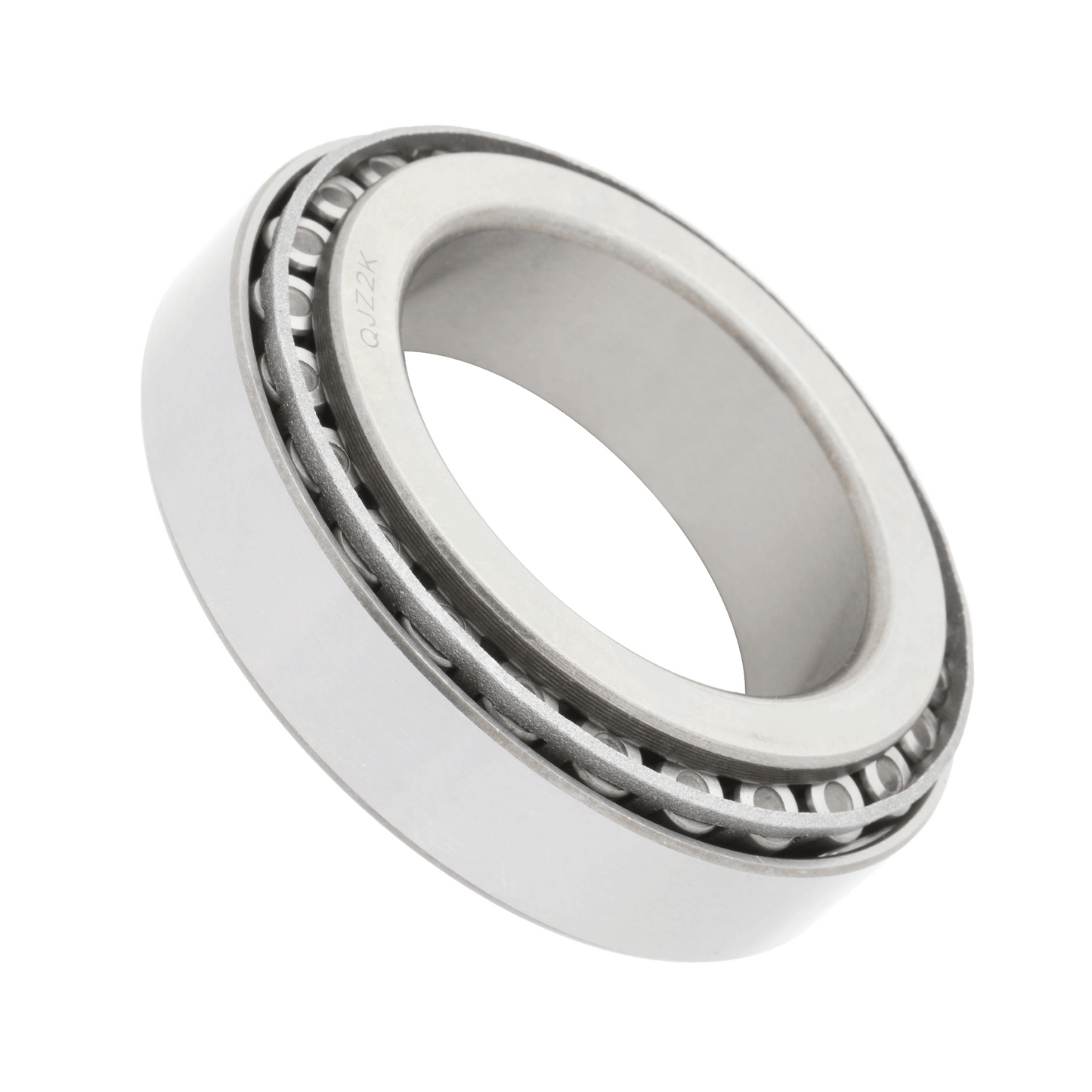

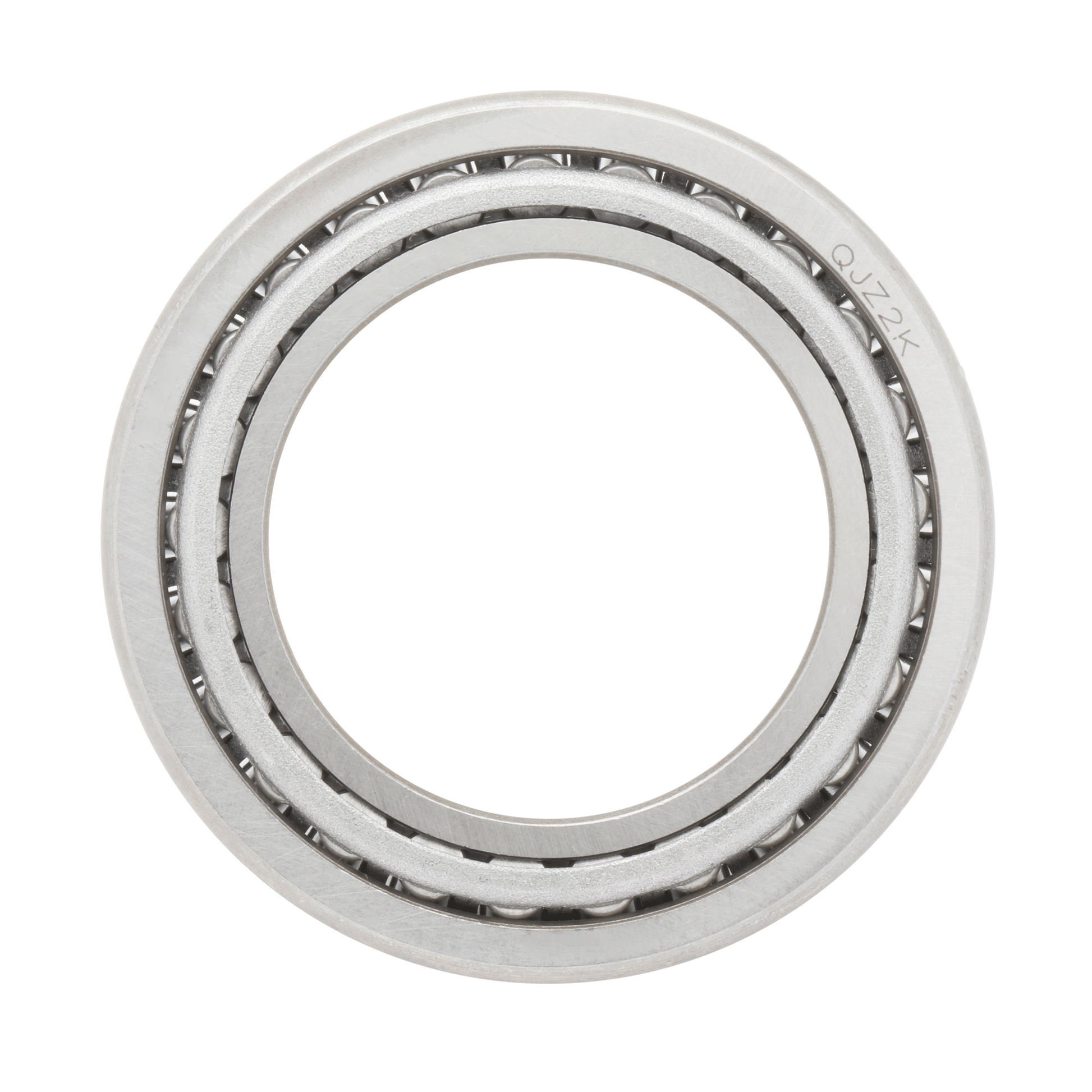

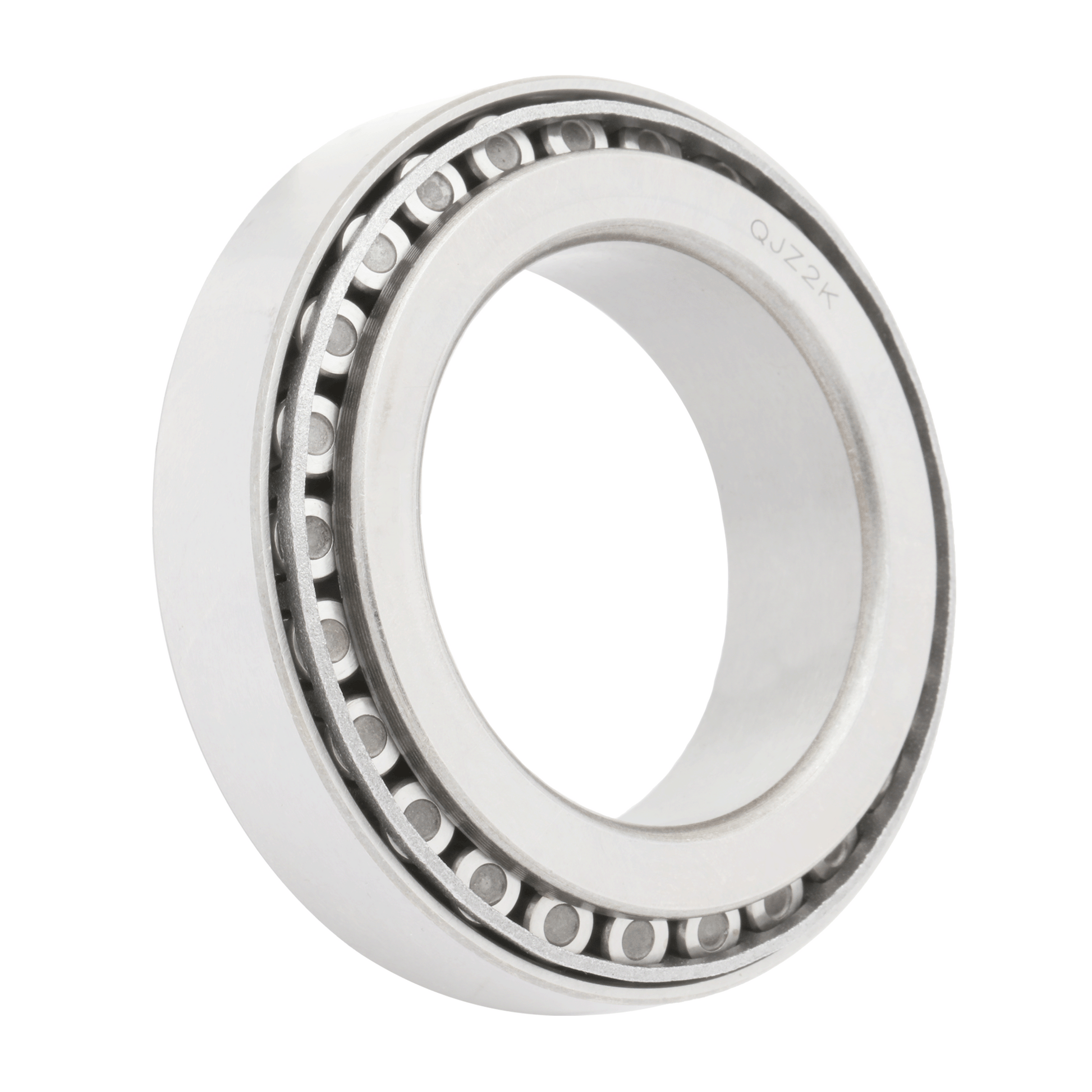

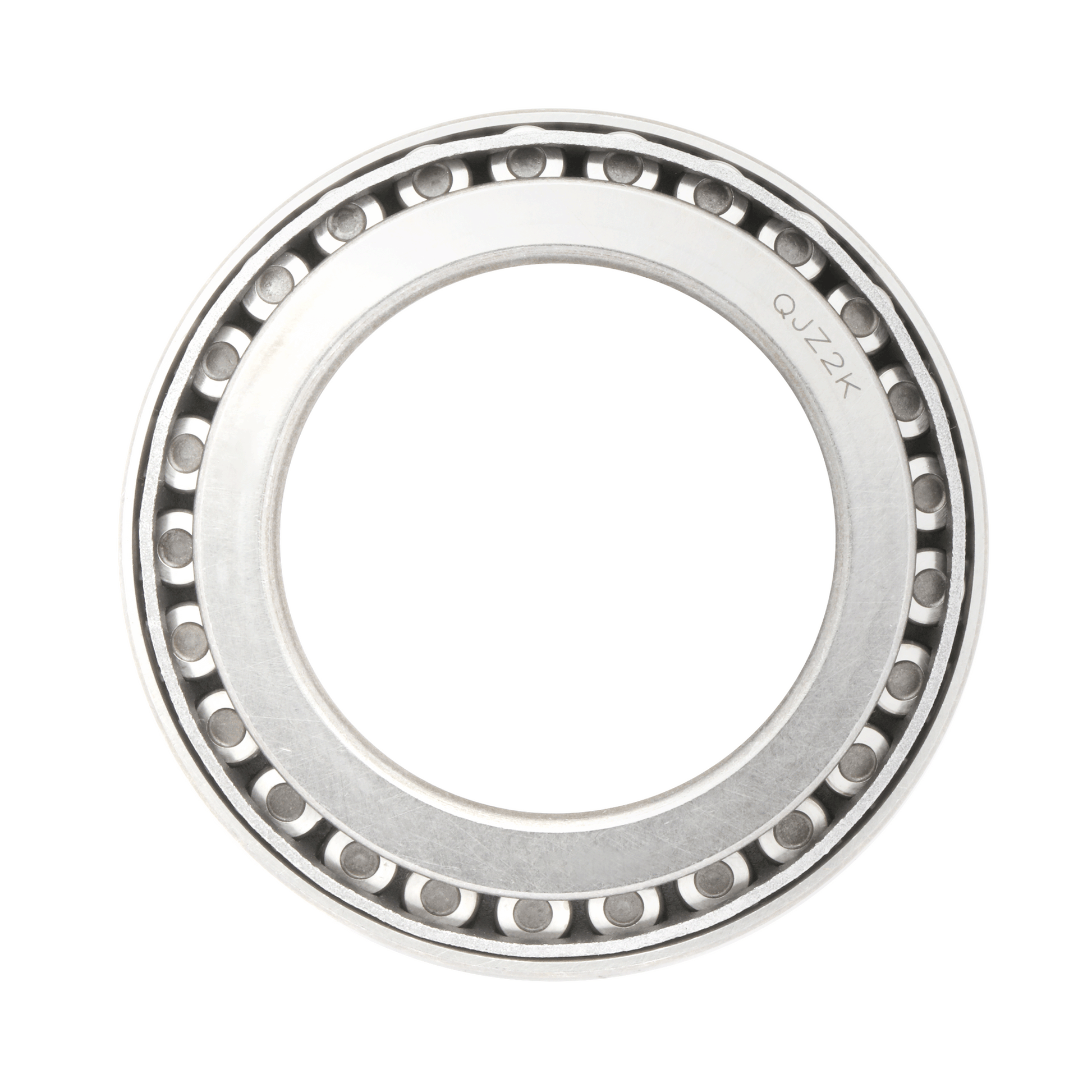

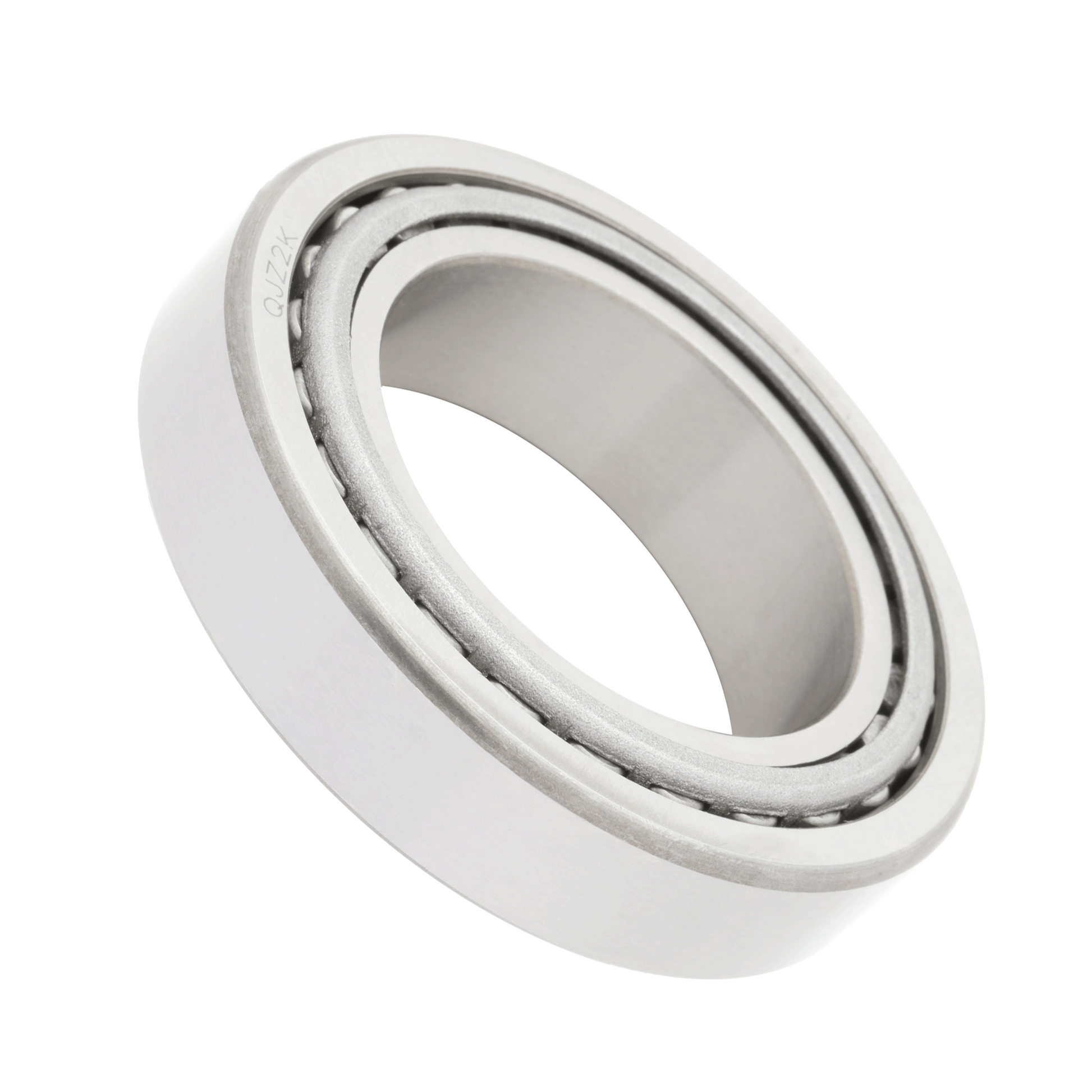

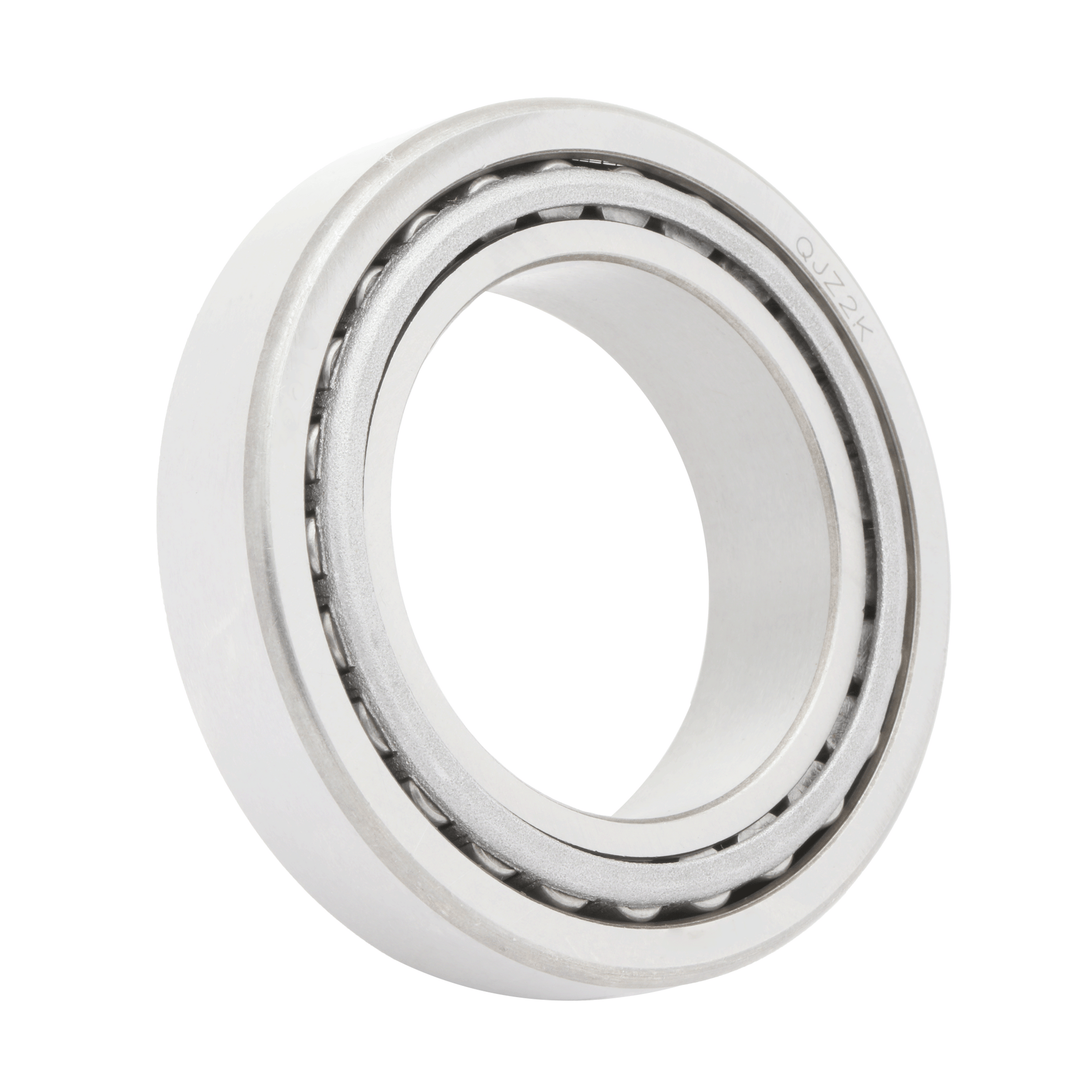

Cone & Race: 33016 - Tapered Roller Bearing Set

Bearing Type:

Taper Roller Bearing 33016

Dimensions in Inches:

3.1496 in (Inner Diameter) x 4.9213 in (Outer Diameter) x 1.4173 in (Total Bearing Width)

Cone Width: 1.4173 in

Cup Width: 1.1614 in

Dimensions in Millimeter:

80 mm (Inner Diameter) x 125 mm (Outer Diameter) x 36 mm (Total Bearing Width)

Cone Width: 36 mm

Cup Width: 29.5 mm

Cross Reference:

TCCE080, VKHB 2140

OEM Replacement:

631780, 5000587219
