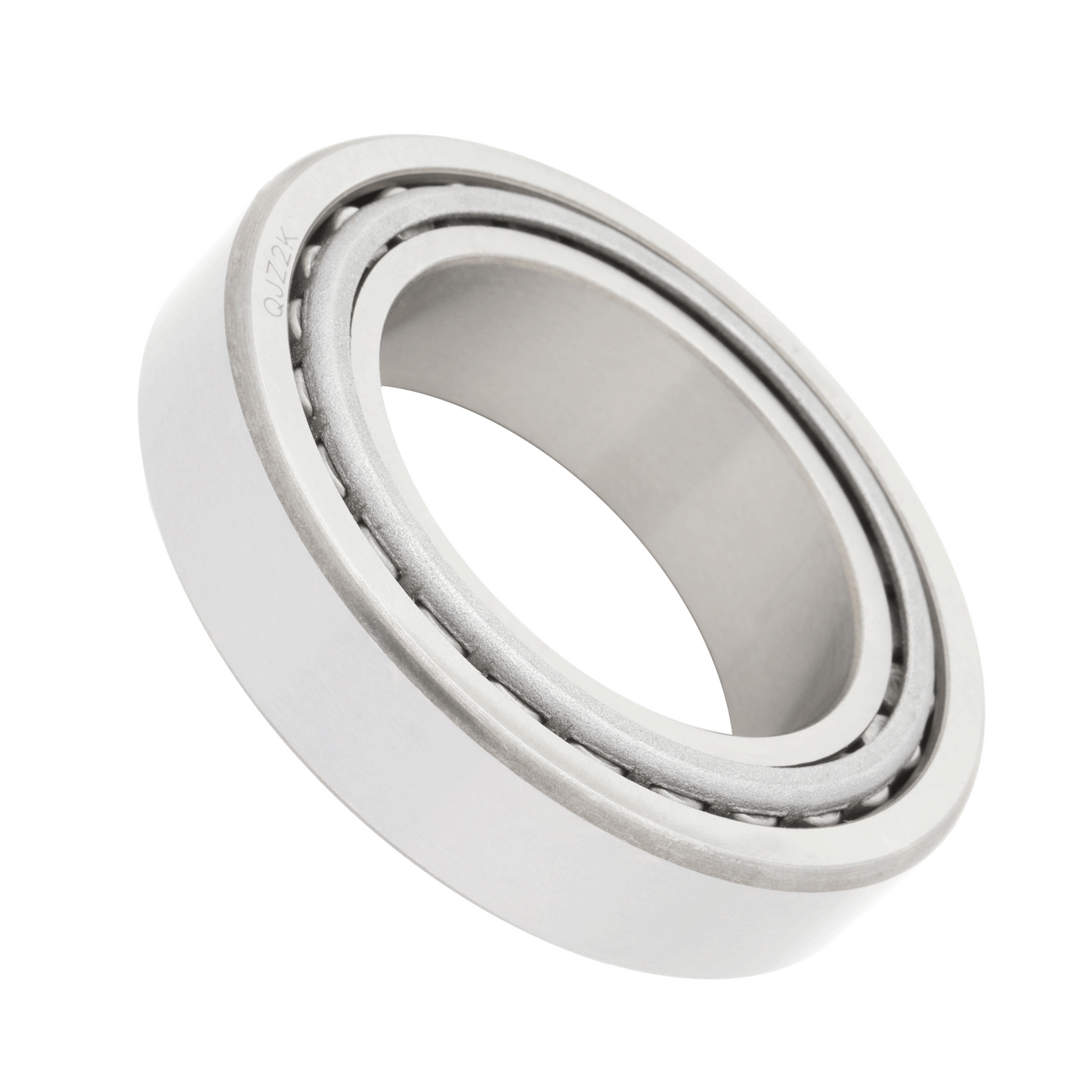

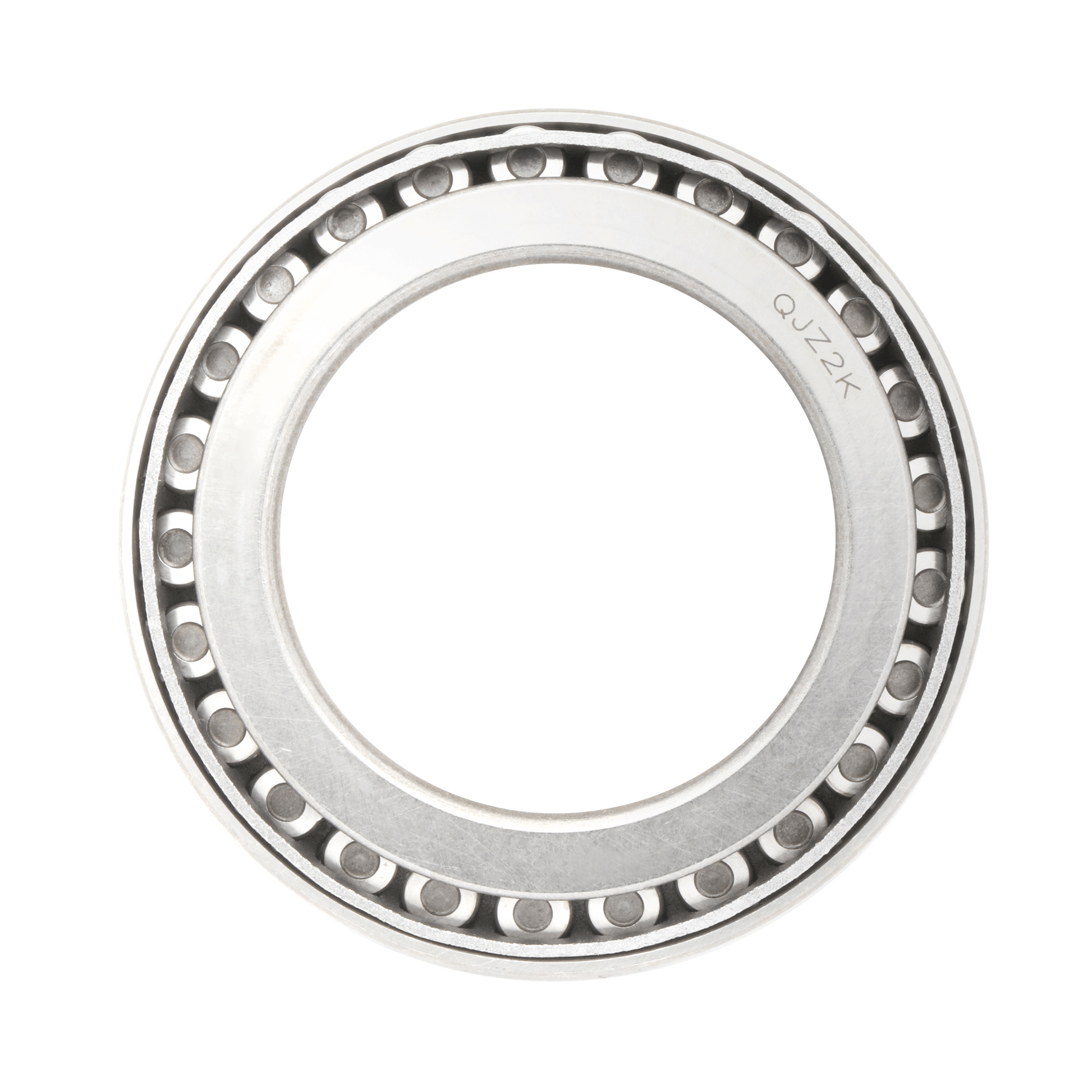

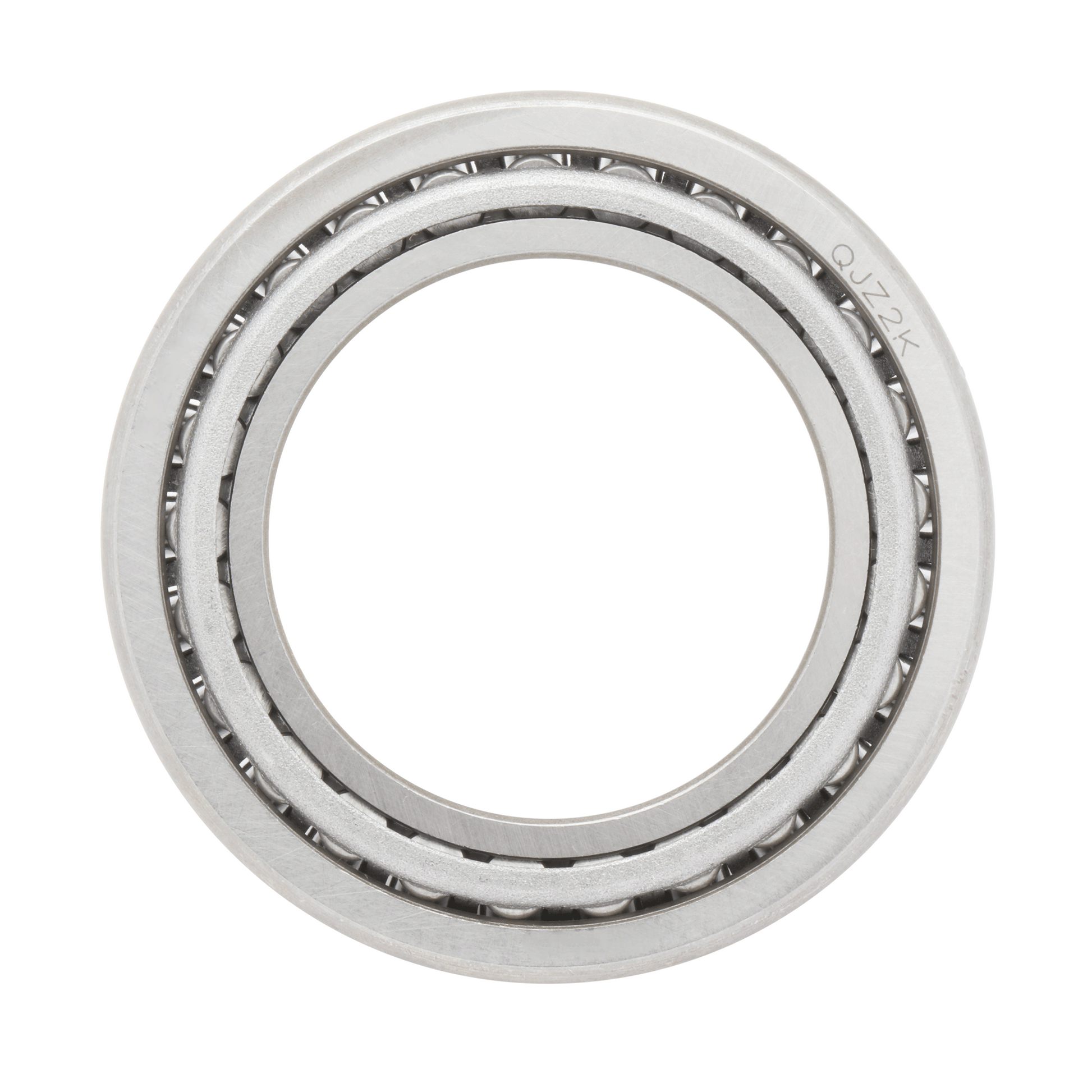

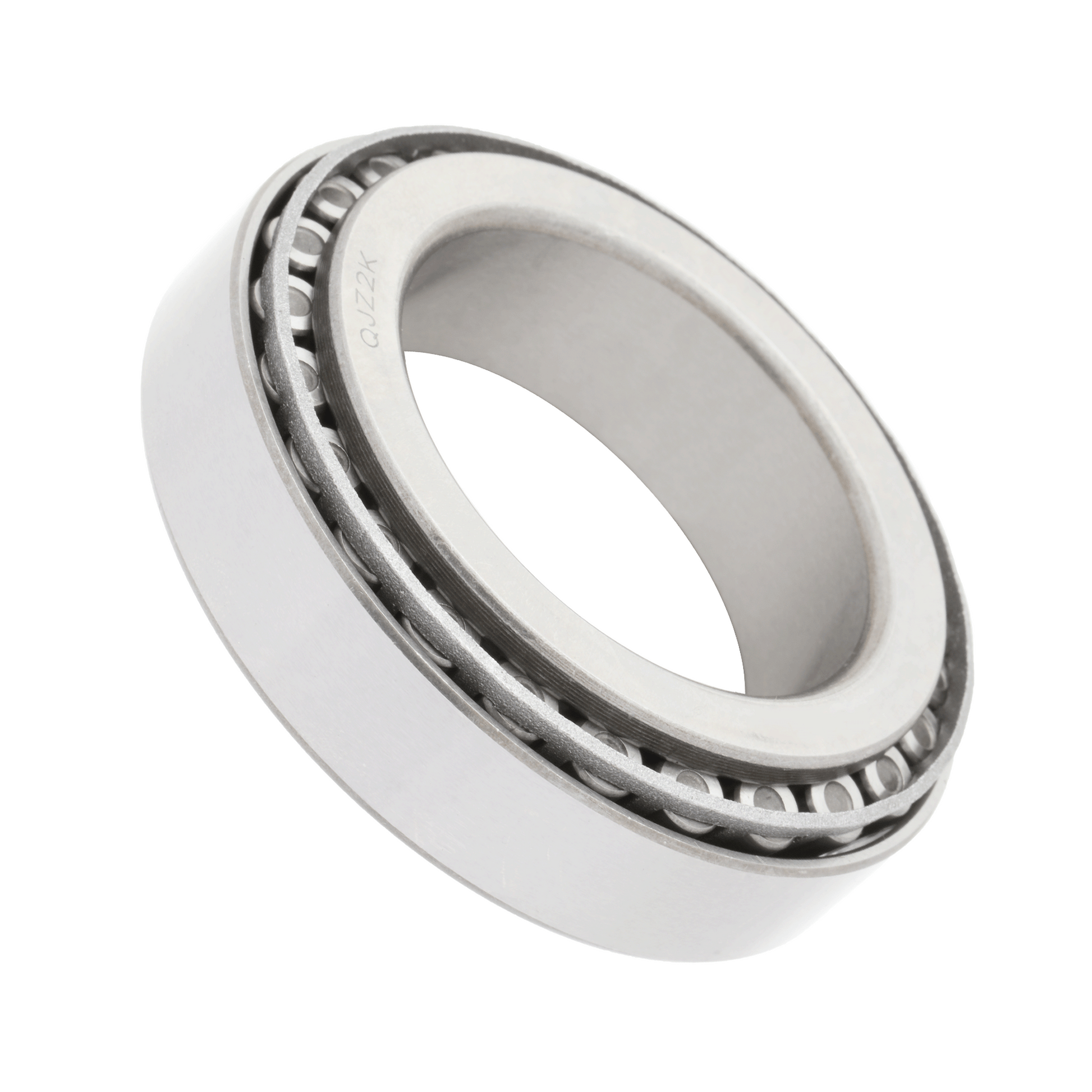

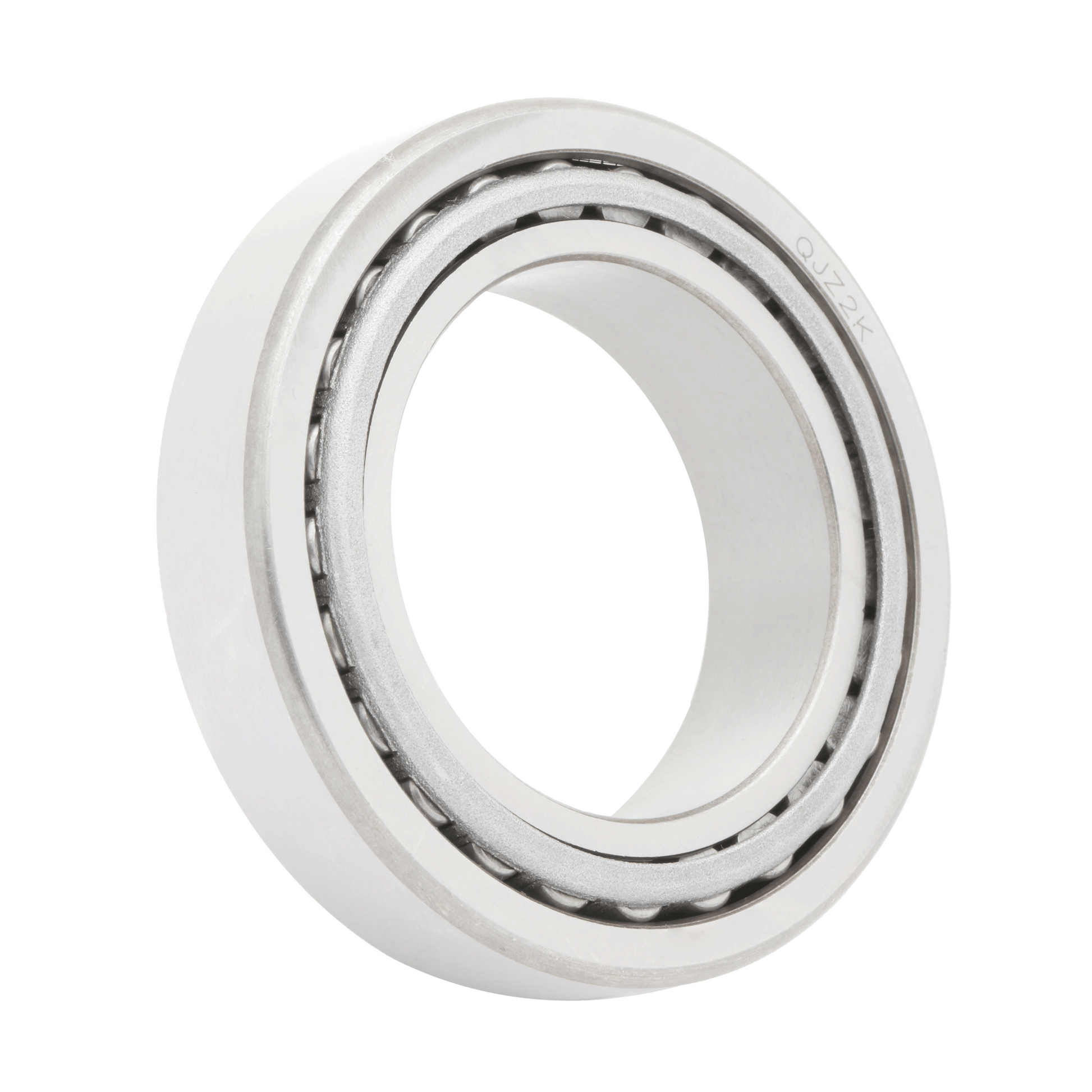

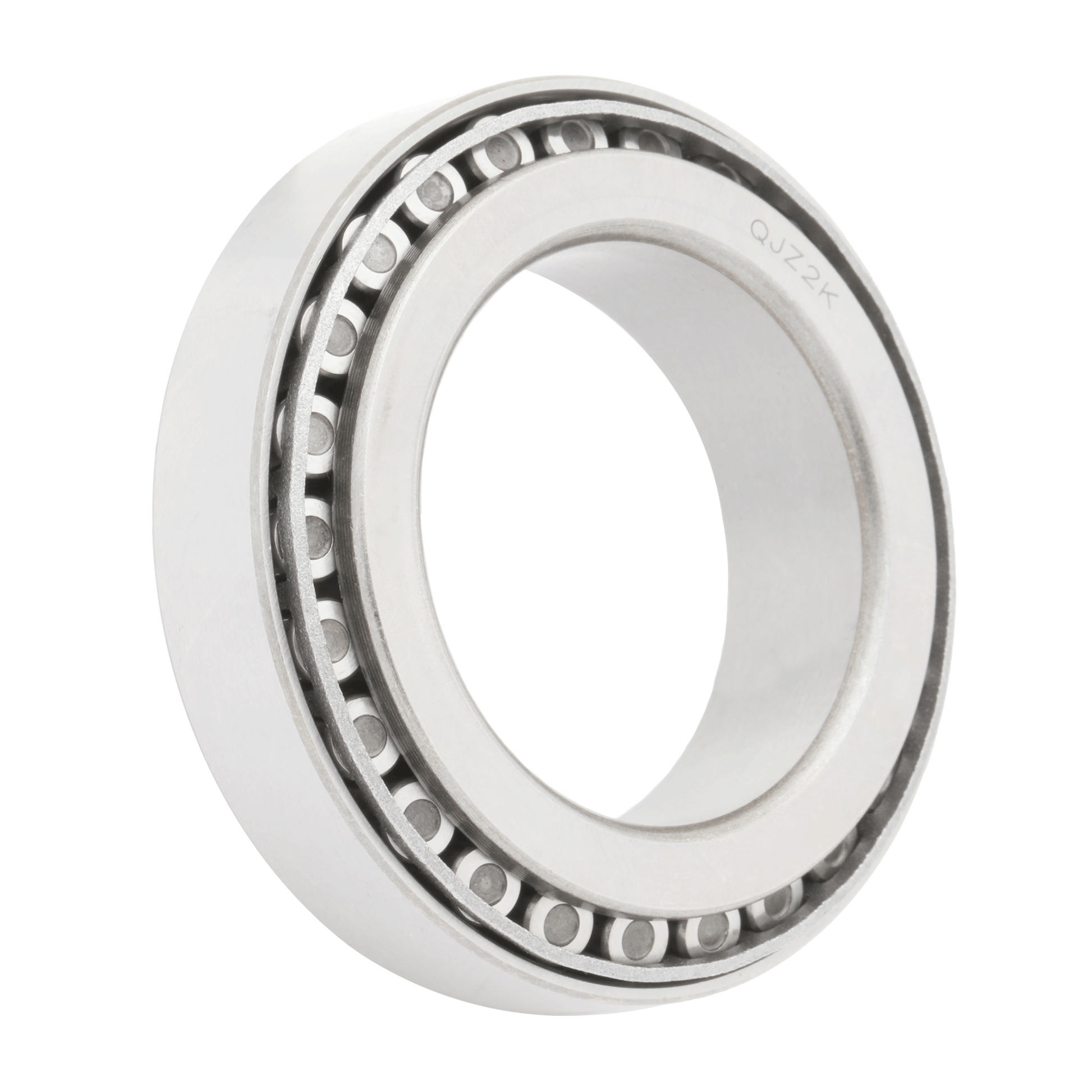

Cone & Race: 33014 - Tapered Roller Bearing Set

Bearing Type:

Taper Roller Bearing

Cup: 33014

Dimensions in Inches:

2.7559 in (Inner Diameter) x 4.3307 in (Outer Diameter) x 1.2205 in (Total Bearing Width)

Cone Width: 1.2205 in

Cup Width: 1.0039 in

Dimensions in Millimeter:

70 mm (Inner Diameter) x 110 mm (Outer Diameter) x 31 mm (Total Bearing Width)

Cone Width: 31 mm

Cup Width: 25.5 mm

Cross Reference:

VKHB 2044, SET 1088

OEM Replacement Number:

06 32499 0109, 06 32499 0110, 81 93420 6016, 005 981 5505, 005 981 6905, 005 981 7605, 50 00 685 837, 183778
